chooses Obsidian as it's Lighting Control Partner.
|
|
|

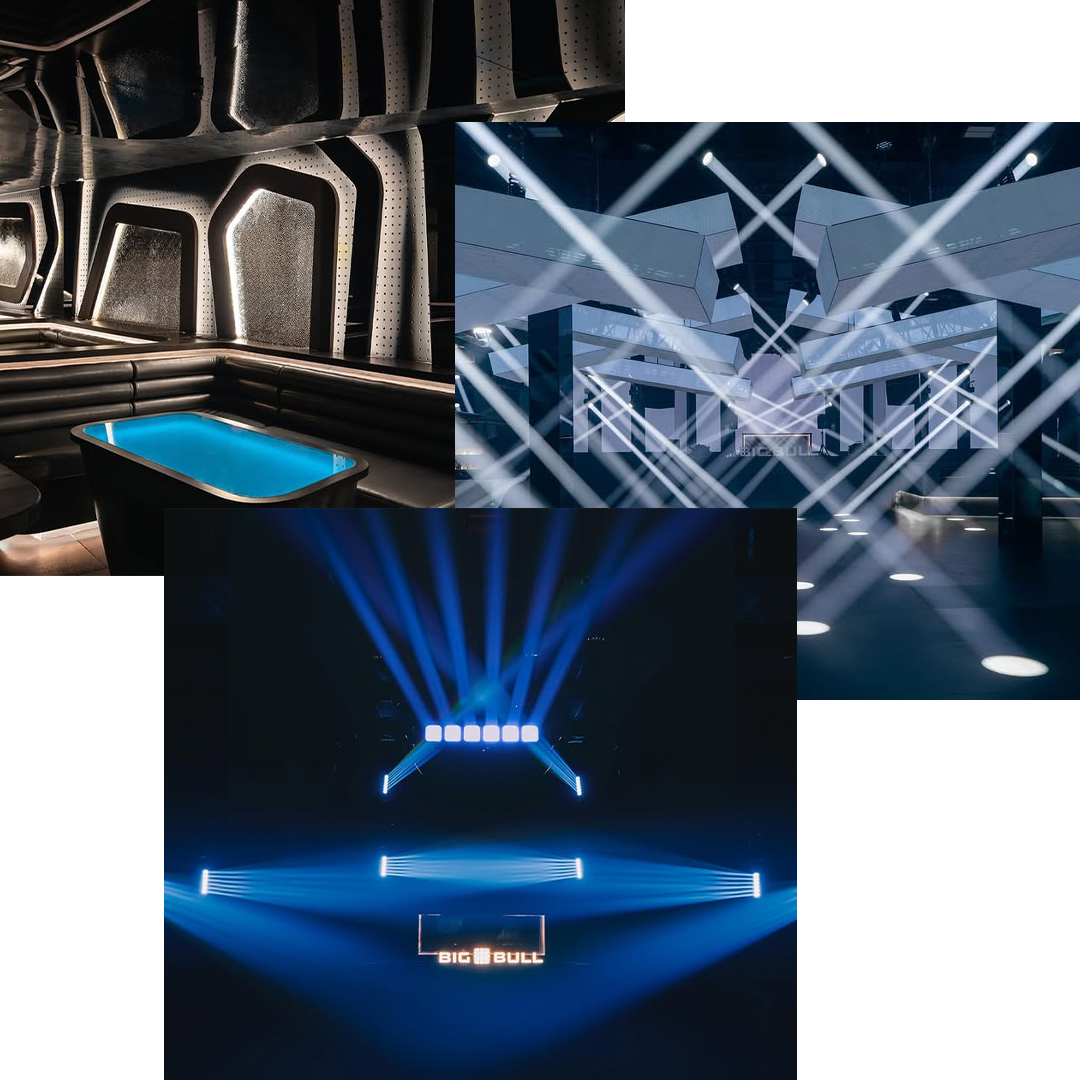

Big Bull is a 30,000-square-foot entertainment destination in Hyderabad, setting a new standard for nightlife in India. Designed as a multi-sensory venue, it seamlessly merges cutting-edge technology, architectural design, and performance-driven experiences. With a double-height dance floor, panoramic LED screens, and over 250 lighting fixtures, every inch of the space is built to deliver energy, scale, and impact. A kinetic LED mesh ceiling powered by 80 hydraulic motors adds a layer of visual dynamism, constantly evolving in rhythm with the music.
Driven by an IP-led programming strategy, Big Bull regularly hosts global pop-ups, genre-fluid performances, and curated artist residencies. The venue combines immersive lighting and audio production with premium cocktails and elevated dining, offering guests a complete, high-impact experience. Every night is designed to feel distinct, pushing the boundaries of modern nightlife through innovation, technology, and bold creative expression.
|
Big Bull is a 30,000-square-foot entertainment destination in Hyderabad, setting a new standard for nightlife in India. Designed as a multi-sensory venue, it seamlessly merges cutting-edge technology, architectural design, and performance-driven experiences. With a double-height dance floor, panoramic LED screens, and over 250 lighting fixtures, every inch of the space is built to deliver energy, scale, and impact. A kinetic LED mesh ceiling powered by 80 hydraulic motors adds a layer of visual dynamism, constantly evolving in rhythm with the music.
|
|
|
|
|
|

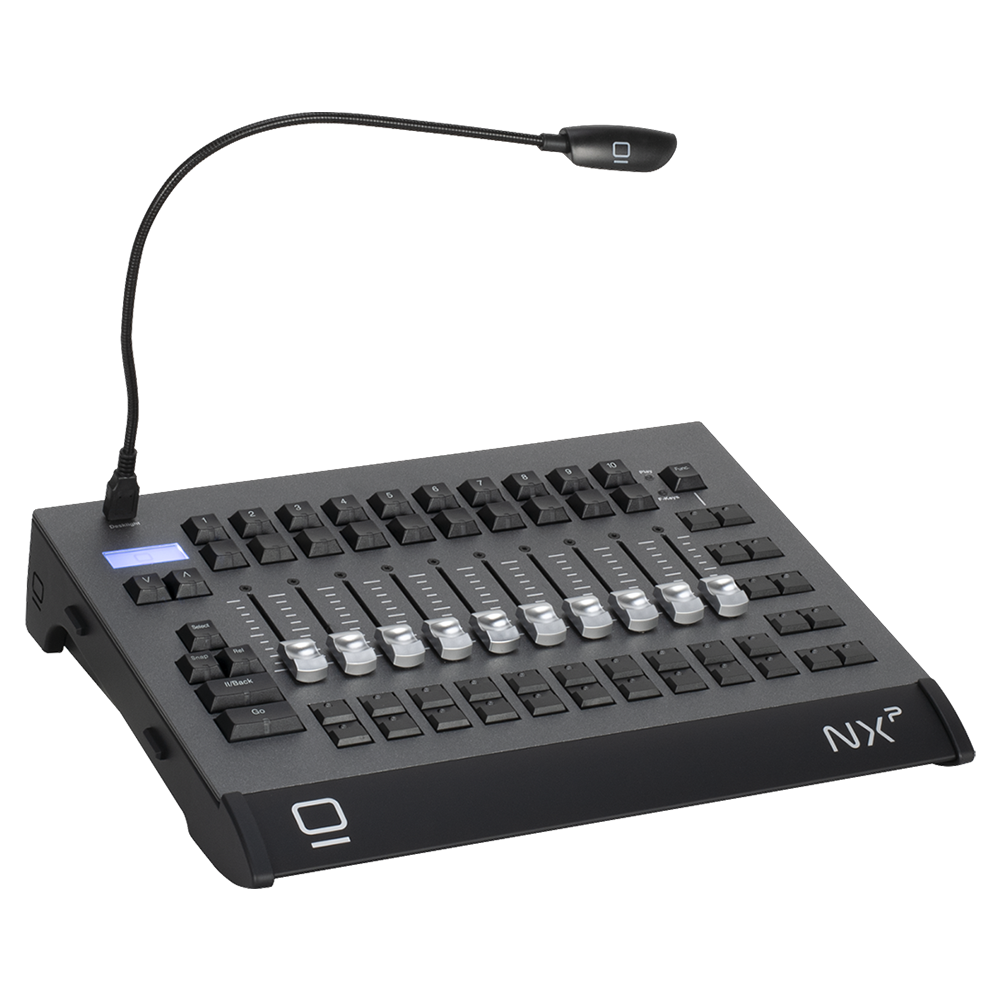

The NX P is a motorized fader wing for ONYX. The ideal expansion for the NX2 console and ONYX PC systems, it replicates the full playback section of the NX1 console.
|
|
|
|

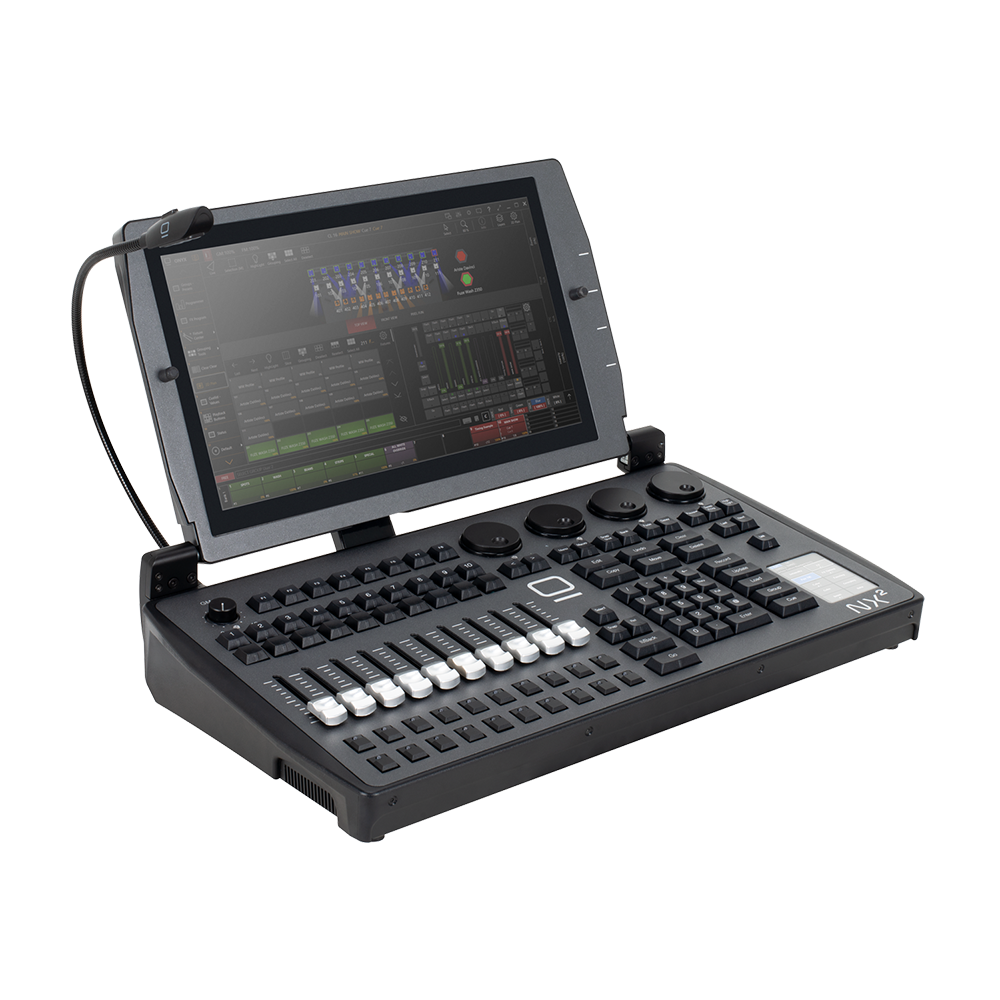

The NX2 is the ultimate compact yet powerful fully integrated lighting controller. As a member of the innovative ONYX platform from Obsidian Control Systems the NX2 is feature rich and never restricted in its capabilities.
|
|
|
|
|
|

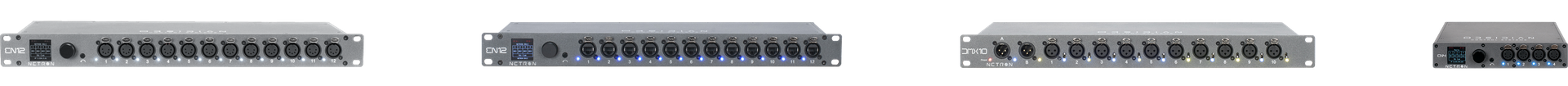

Big Bull’s lighting system uses a complete Netron infrastructure for reliable DMX distribution. The DMX 10.3 splitter ensures clean signal routing with 10 outputs and dual inputs. High-density zones are supported by the EN12 and EN12-45, offering twelve RDM ports each in XLR and RJ45 formats. The EN4 provides precise control for smaller zones, completing the venue’s robust data network.
|
|
|

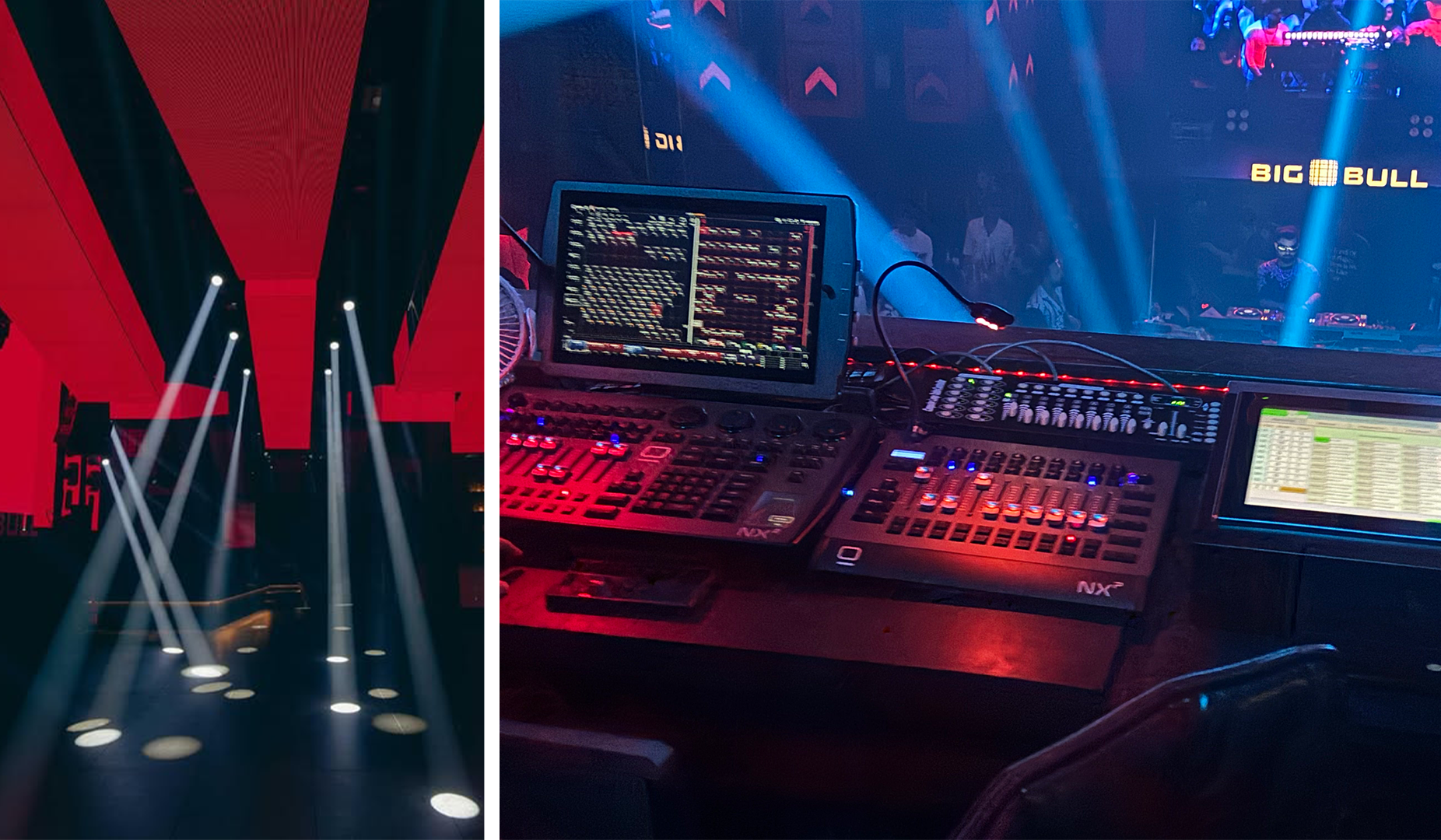

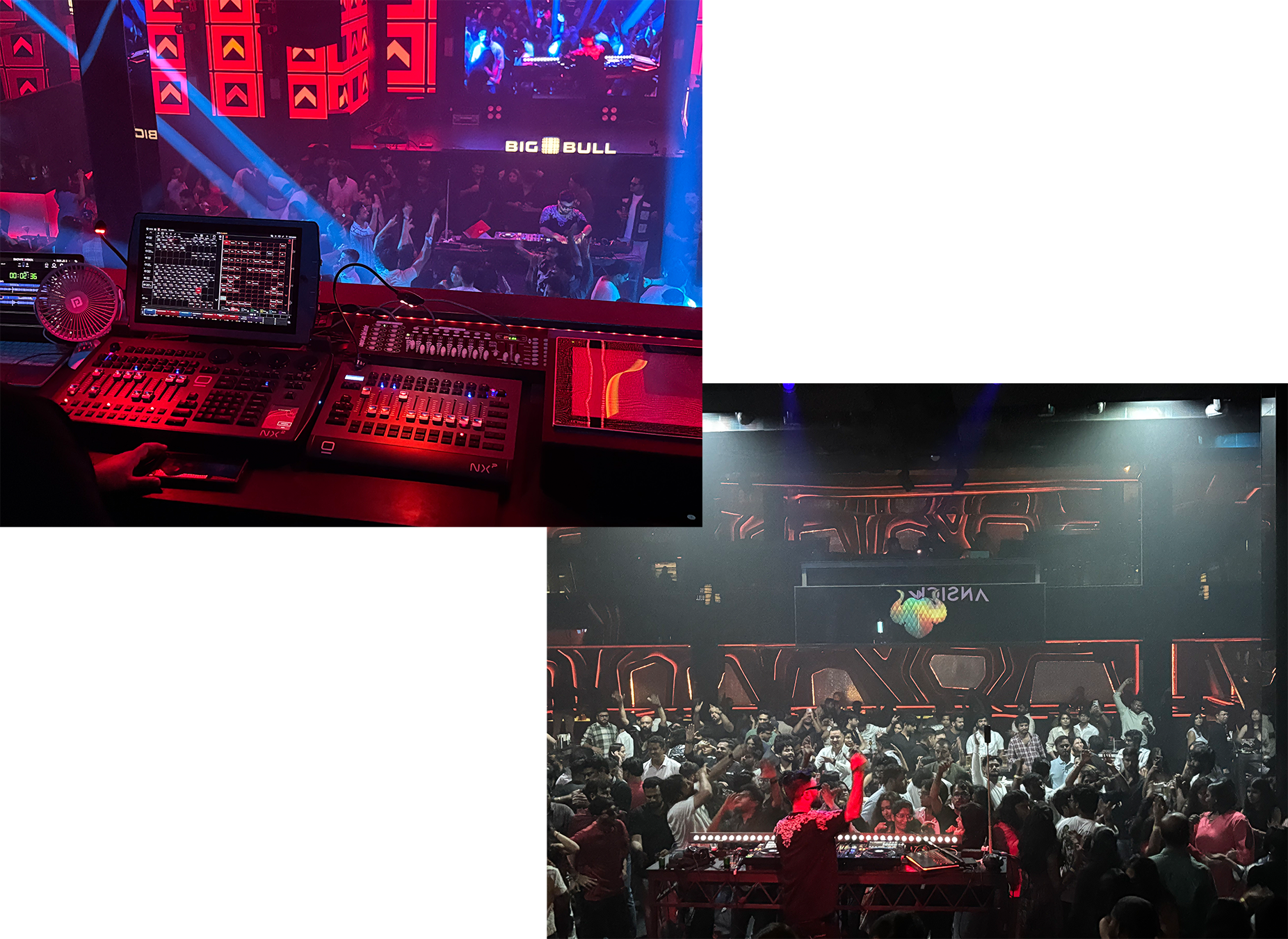

Big Bull set out to establish one of Hyderabad’s most technically advanced entertainment venues, the brief was clear—a lighting control system that could handle over 250 fixtures, kinetic ceiling elements, and dynamic lighting zones with speed, reliability, and adaptability. The venue’s unique double-height architecture and evolving event formats demanded a workflow that could support both precise pre-programming and responsive real-time operation. To meet these needs, the technical team chose the ONYX platform from Obsidian Control Systems, known for its stable performance and seamless integration with complex visual setups. At the centre of the system is the Obsidian NX2 console, delivering advanced programming tools and real-time control. To enhance live operation, the NX P motorized fader wing was added, giving operators immediate access to playback functions and smooth manual control for on-the-fly adjustments.
For DMX distribution across the venue, the team relied on Netron’s range of data devices to ensure stability and flexibility. The Netron DMX 10.3 was deployed to handle signal splitting, offering ten assignable 3-pin outputs with dual-input redundancy for clean and isolated routing. To cover high-output areas, the Netron EN12 and EN12-45 were used—both providing twelve RDM-compatible outputs via XLR and RJ45 respectively, with Artnet input support to handle large fixture groups efficiently. For smaller zones and targeted control, the Netron EN4 served as a compact 4-port Artnet-to-DMX gateway, maintaining clarity and responsiveness where needed. This combination created a decentralized, scalable, and high-performance lighting network that meets the daily demands of Big Bull’s high-energy events, giving the technical team the confidence and control to deliver consistent, show-ready results.
|
|
|
NX2 is a ultimate compact yet powerful fully integrated lighting controller upto 64 universes.
|
Motorized fader wing for ONYX.
|
Rackmount 10-port DMX Splitter with dual inputs and assignable 3 pin XLR DMX outputs.
|
Powerful high-density Ethernet to DMX gateway with 12 RDM compatible RJ45 DMX ports.
|
Powerful high-density Ethernet to DMX gateway with 12 RDM compatible DMX ports.
|
Powerful Ethernet to DMX gateway with 4 RDM compatible DMX ports.
|
|
|
12" Passive, 15° Fixed Angle Array Cabinet
|
15" Passive Coaxial Differential Dispersion On-wall Loudspeaker
|
12" Passive Coaxial Differential Dispersion On-wall Loudspeaker
|
Four-channel 20,000W Class D Power Amplifier
|
2 in, 6 out network system controller
|
|
|
"The transformation in our venue’s sound is incredible. From the dance floor to the lounge, the clarity and impact are unmatched. The new system has elevated the entire club experience, and the response from our guests has been overwhelmingly positive."
-Mr. Rajan,
Director,
GOYA.
|
|
|
|
|
The lighting system has become an essential part of how we deliver energy and emotion at Big Bull. It allows us to shift atmospheres instantly, keeping every event fresh and dynamic. The control is smooth, responsive, and incredibly reliable. It’s elevated the experience for both performers and guests.
-Mr. Shashidhar Kasi,
Co-founder,
Big Bull, Hyderabad.
|
|
|
Lighting has completely transformed how we shape experiences at Big Bull. The system lets us move from subtle ambience to full-blown spectacle in seconds. It has elevated our shows and given us new ways to engage the audience. Every visual feels purposeful and powerful.
-Mr. Ramaraju Kallepalli,
Co-founder,
Big Bull, Hyderabad.
|
|
|
|
|
|
This is one of the most technically sound lighting systems I’ve seen in a venue of this size. The control is sharp, DMX flow is uninterrupted, and the user interface is seamless. It’s a dream to program and operate. The lighting install here truly brings the venue to life.
-Mr. Palagani Dushyant Reddy,
System Designer and Consultant,
White Noise.
|
|
|
|
|
"The installation at GOYA perfectly balances power and precision, creating an immersive sound experience throughout the venue. The system delivers exceptional clarity and impact, ensuring that every performance and set sounds exactly as intended."
Mr. Abhimanyu Chopra,
Sound Consultant,
Chopra Designs.
|
|
|
From pre-programming to live execution, the system at Big Bull supports every part of the design process. It allows for rich creativity without technical limitation. Working with this setup has elevated the way we approach visual storytelling inside the venue.
- Mr. Klinton Mascarenhas,
Lighting Designer Associate.
|
|
|
|
"The system delivers an outstanding combination of clarity and power, ensuring an immersive experience throughout the venue. Every element has been fine-tuned to provide a balanced and dynamic sound that enhances both live performances and DJ sets."
Mr. Sai Prem,
Pre-Design & Sales Engineer,
VMT Enterprise.
|
|
|
|
|
|
"The installation at GOYA redefines club audio with exceptional clarity and power. The system ensures seamless coverage across all levels, enhancing every performance. It’s a perfect blend of precision and impact for an unforgettable experience."
-Mr. Anurag Khanna,
National Sale Manager,
VMT Enterprise.
|
|
|
|
|
Big Bull showcases the power of collaboration between technical design and distribution expertise. The lighting setup is strong, responsive, and built to last across formats and seasons. With seamless signal flow and control integration, it’s an install we’re incredibly proud to be a part of.
-Mr. Kekul Sheth,
Head of Sales Distribution
VMT Enterprise.
|
|
|
"GOYA's sound system delivers an unparalleled audio experience, ensuring every beat is felt with precision and power. The installation sets a new standard for nightlife venues. This project showcases the perfect fusion of technology and expertise."
Mr. Jeff Mandot,
Director,
VMT.
|
|
|
|
The lighting installation at Big Bull is a powerful example of design meeting purpose. It gives the venue the ability to transform, react, and tell a visual story in real-time. Every event feels elevated, intentional, and unforgettable. We’re proud to have enabled that possibility.
Mr. Jeff Mandot,
Director,
VMT.
|
|
|
|
